Industrial BX Cable Wire Stripping Machine – Heavy‑Duty Copper Cable Stripper
Industrial BX Cable Wire Stripping Machine – Heavy‑Duty Copper Cable Stripper
Couldn't load pickup availability

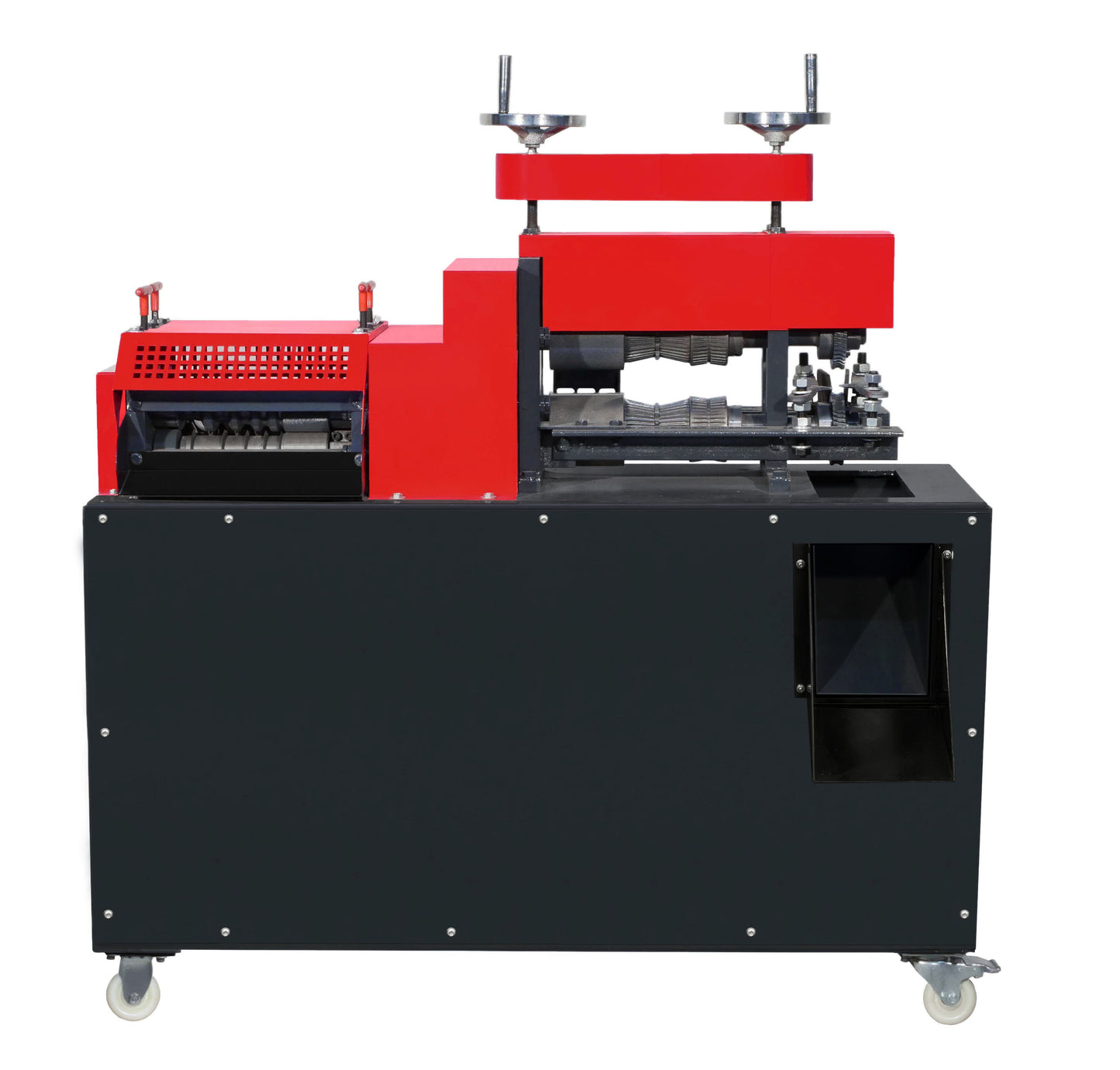

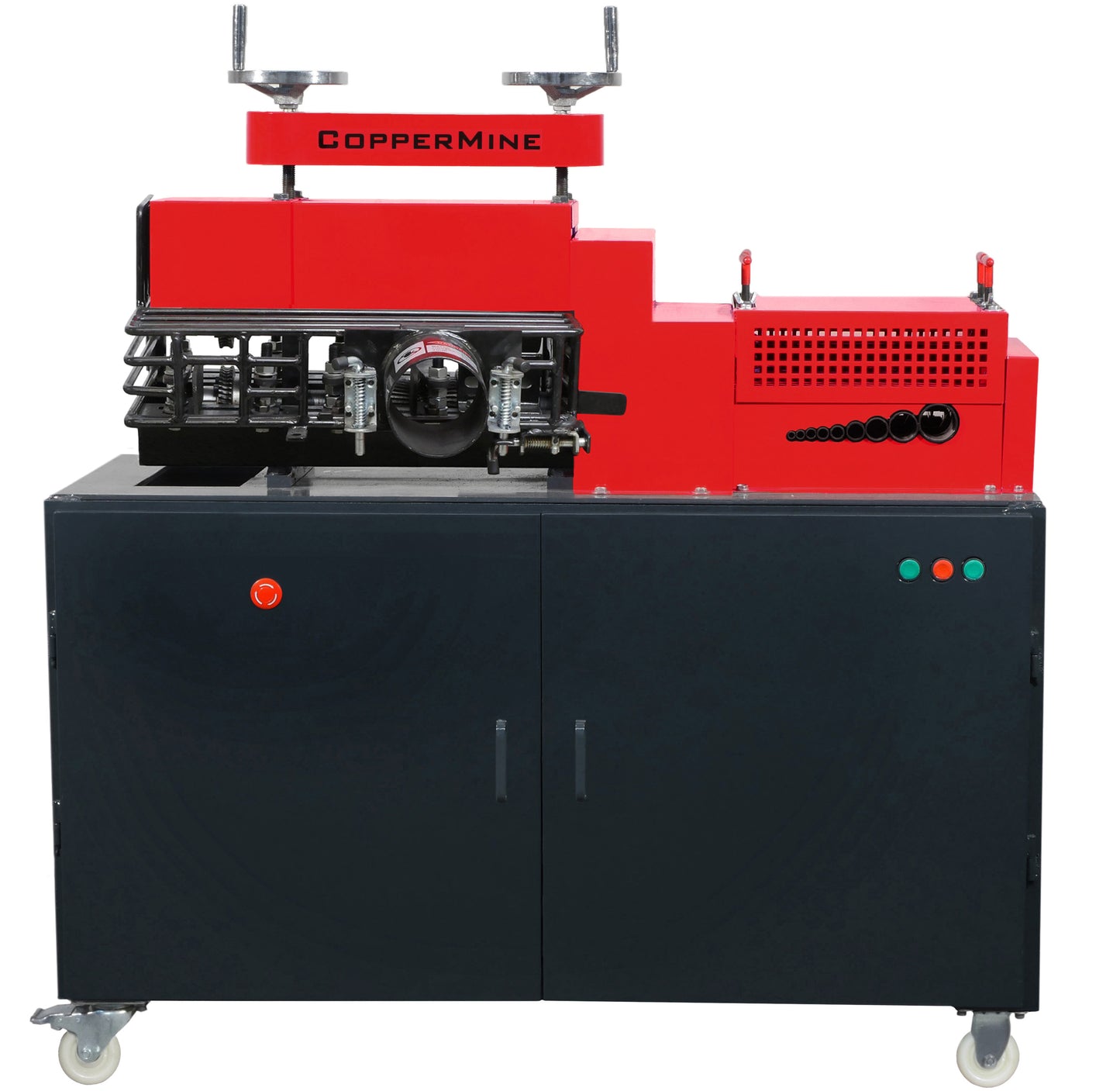

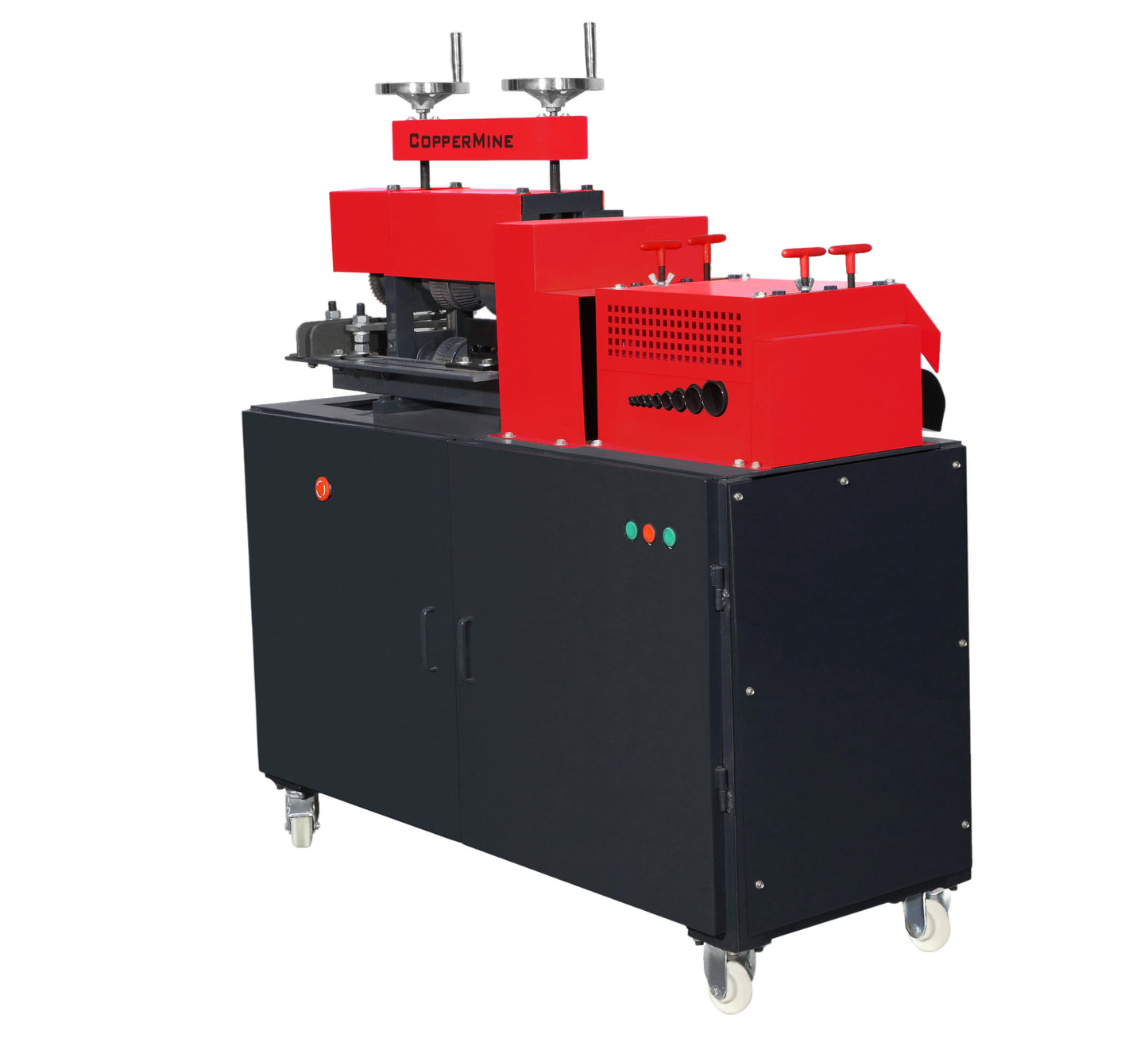

Industrial BX Cable & Copper Wire Stripping Machine – Model 520
A high‑performance automatic cable stripper built for industrial recycling and processing of BX, Romex®, armored, and large diameter cables.
This design is protected by the US and foreign granted and pending utility and design patents.
Key Features
- Automatic BX & Armored Cable Stripping: Handles aluminum & steel jacketed BX cables with precision.
- Heavy‑Duty Motor & Adjustable Speed: Powerful 5.5HP motor lets you adjust feed speed for varied wire insulation types.

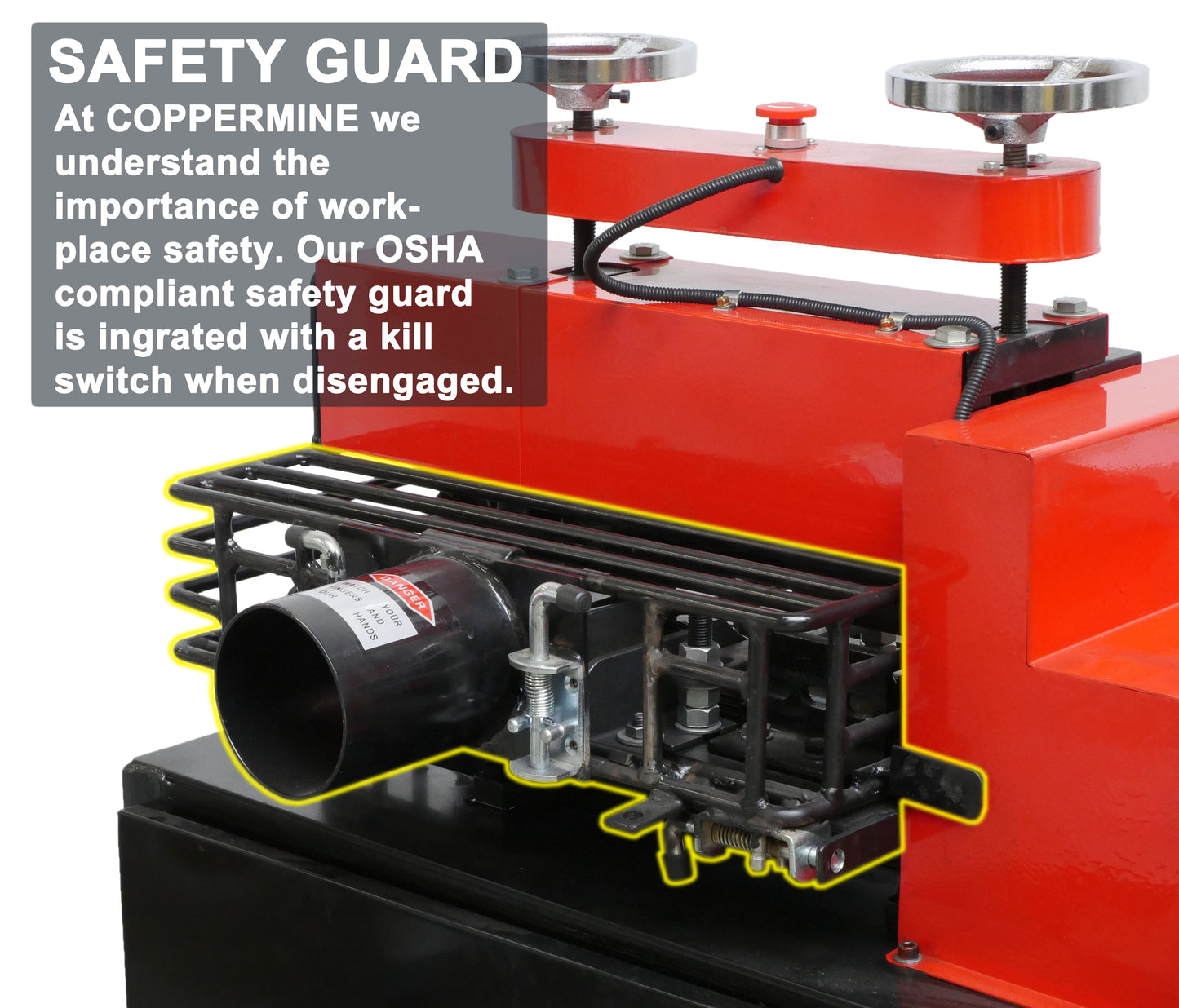

- OSHA‑Compliant Safety & Easy Operation: Safety guard with kill switch and one‑person operation.
- Quick‑Change Shaft System: Faster blade changes reduce downtime.
- Wide Cable Compatibility: Accepts cables from 22 AWG stranded or solid up to 4‑1/2″ diameter.
Ideal For
✔ Scrap yards
✔ Recycling centers
✔ Electrical demolition
✔ Industrial wire processing
Designed for Cables & Wires:

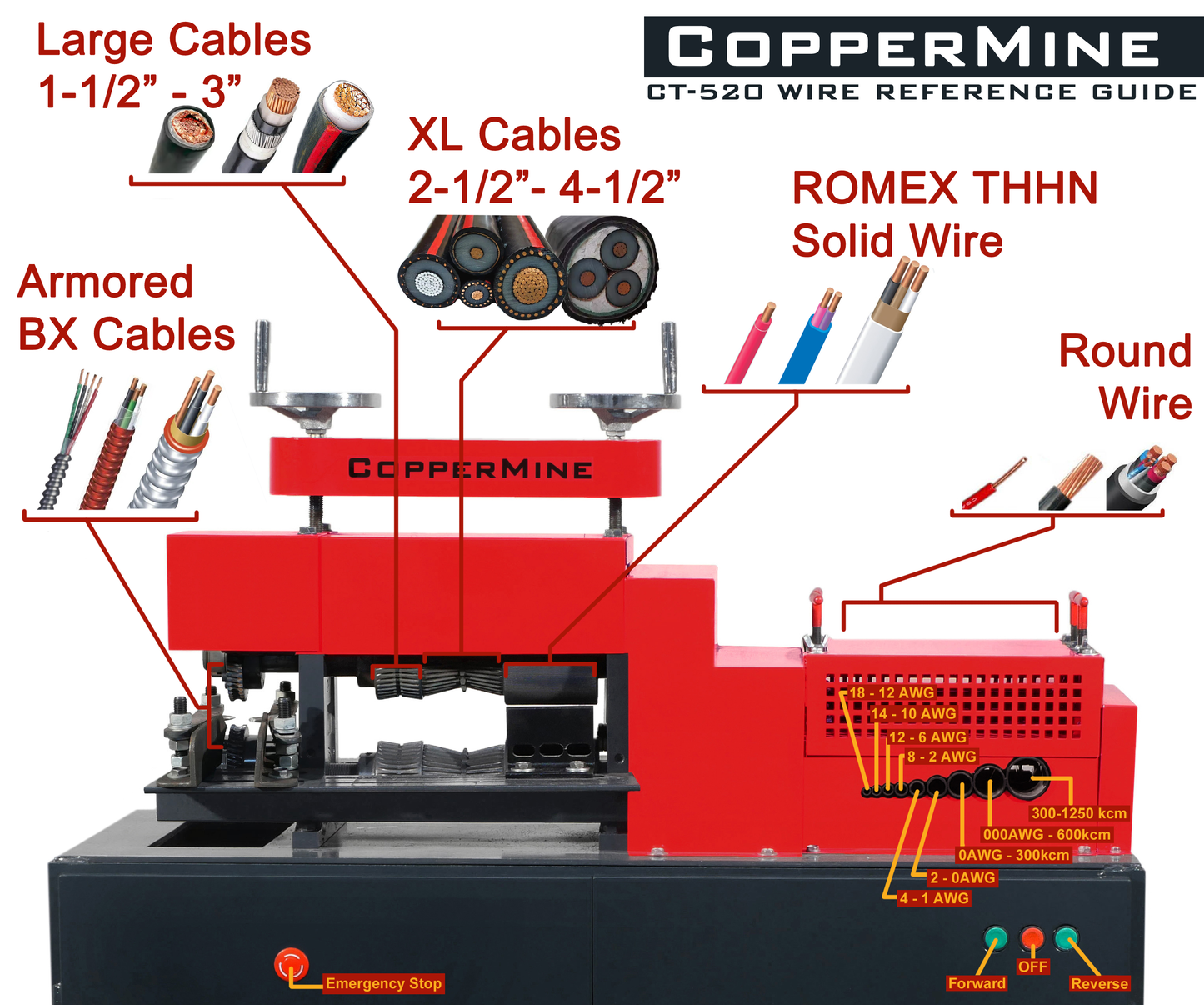

From 22 AWG stranded or solid up to 4‑1/2″, Aluminum BX cables, Steel BX cables, URD cables, Direct Burial cables, THHN, Romex®, Coax cable, Machine Tool Wire (MTW), UF-B Wire, SO cables, and many more!
Machine Specifications:
+ Power requirement: 3-Phase 208VAC 60Hz 15A or (Optional: Single-Phase 240VAC 60Hz 30A)
+ Motor: 208 -240VAC, 60Hz, 5.5HP, 3-Phase or (Optional: 240VAC, 60Hz, 5.5HP, Single-Phase)
+ Weight: 780 lbs.
+ Dimensions: 50” x 20” x 53”
+ Total channels: 15
+ Adjustable Speed: Lets you set the optimum speed based on wire condition
+ Adjustable Tension works with different insulation, soft or hard
+ Double-Cut Mechanism gets the copper out in just one pass
+ Stripping speed: from 60 to 300 fpm
+ Stick blades: 2 installed on driving gears
+ Circular blades: 14 installed on front and back shafts
+ Shipping Pallet Dimensions: 64 L x 32 W x 60 H
+ Shipping Weight: 1100 lbs.
Note:
* The above range of wire gauges is for typical wire products. Due to the variety of wire structures actual range may vary.
Try it for 30 days, and if it does not meet your expectations, just return it for a full refund of the purchasing price, no questions asked.
One Year Warranty (Standard):
CopperMine Tools warrants to the original purchaser that for a period of one year from the date of purchase, all parts and components, excluding blades and belts, of the product are free from defects in materials or workmanship.
