Industrial Copper Wire Recovery Granulator System Complete with Preshredder and Conveyor

$ 40,000.00

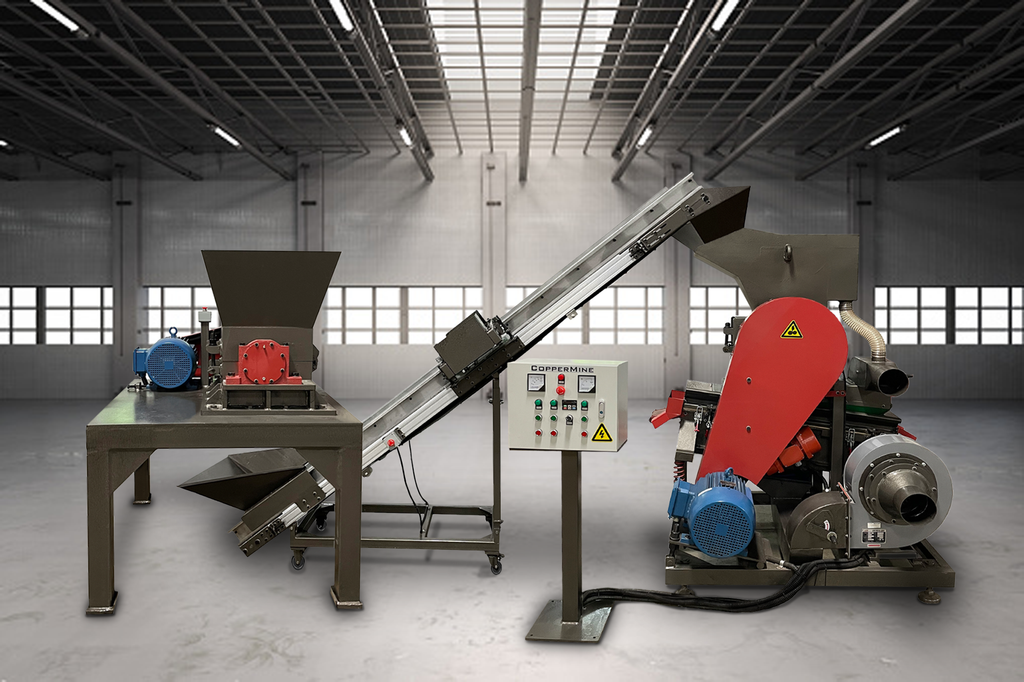

The CopperMine compact copper wire processing system is designed for small to medium operations. A wire chopping and separating system that is used to process various kinds of smaller gauge wire such as communication cables, automotive harness, romex, and other scrap wires or cables. This complete package includes our CT-910 Preshredder, CT-920 conveyor with magnetic cross belt, and the CT-610 granulator, everything you will need to easily add value to your operation and increase profit. This is a compact solution that does not take up an excessive amount of space. Even a rookie can be quickly trained to operate this One-Person system!

Exclusive Features:

  • Variable Frequency Drive provides precise separation control.
  • User Friendly Quick-Change screens, bearing grease nipples, multiple access doors to airway.
  • Cyclone Dust Collector efficient in removing fiber and dust, and requires a lot less clean up.
  • Magnetic cross belt an effective solution to remove steel and iron from your wire.
  • Comprehensive Safety Measures.

Specifications:

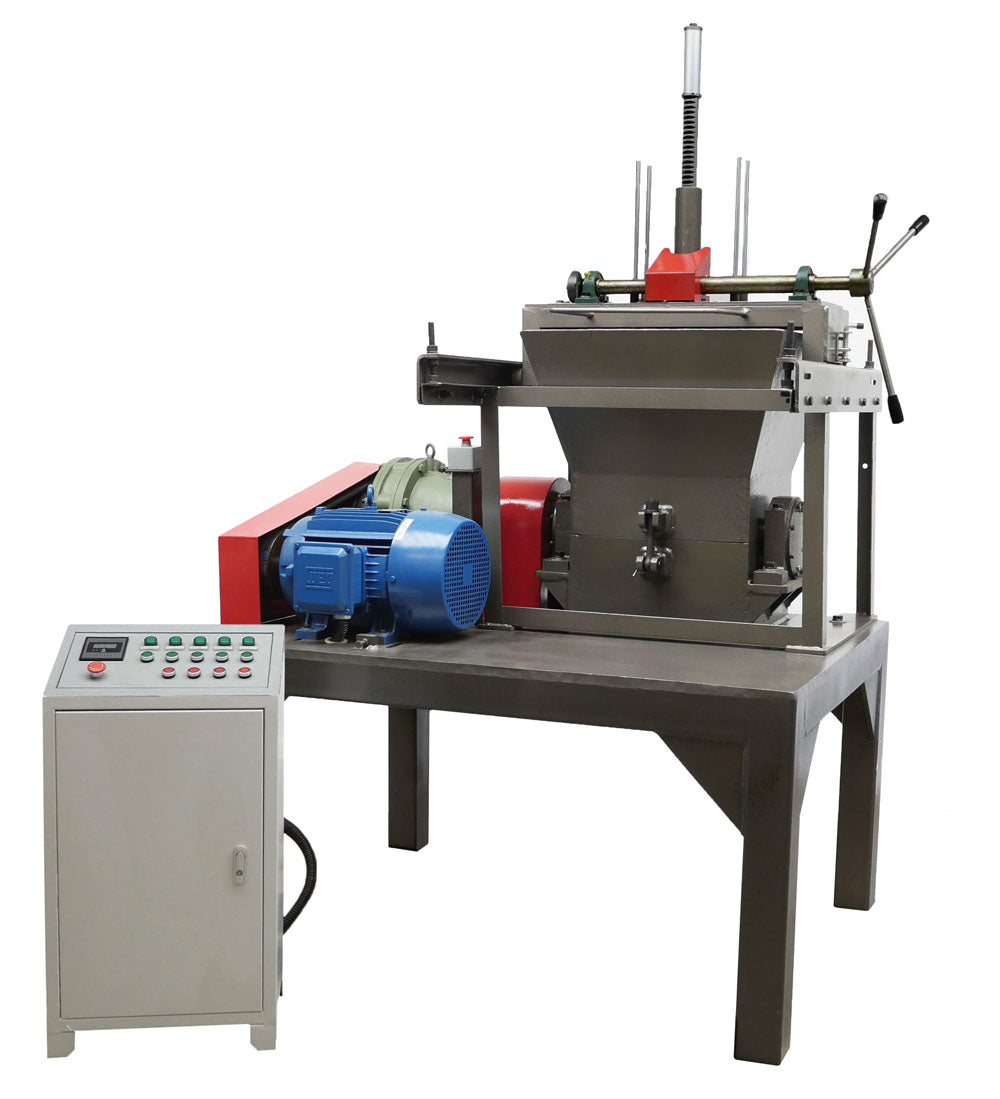

CT-910 CopperMine's Preshredder
Integrating a preshredder into your operation prevents your operator from having to manually chop and sort your tangled wires into smaller sections. Increase your operations efficiency by dumping large barrels or gay-lords of copper wire directly into the preshredder hopper.

Power requirement: 208 - 220VAC, 60Hz, 3-Phase, 50A.
Power consumption: up to 11 kW.
Production (throughput lbs/hr): 1,000 lbs/hour
Throat width:
16"
Dimensions: 60" x 43" x 63"H
Weight: 1,700 Lbs

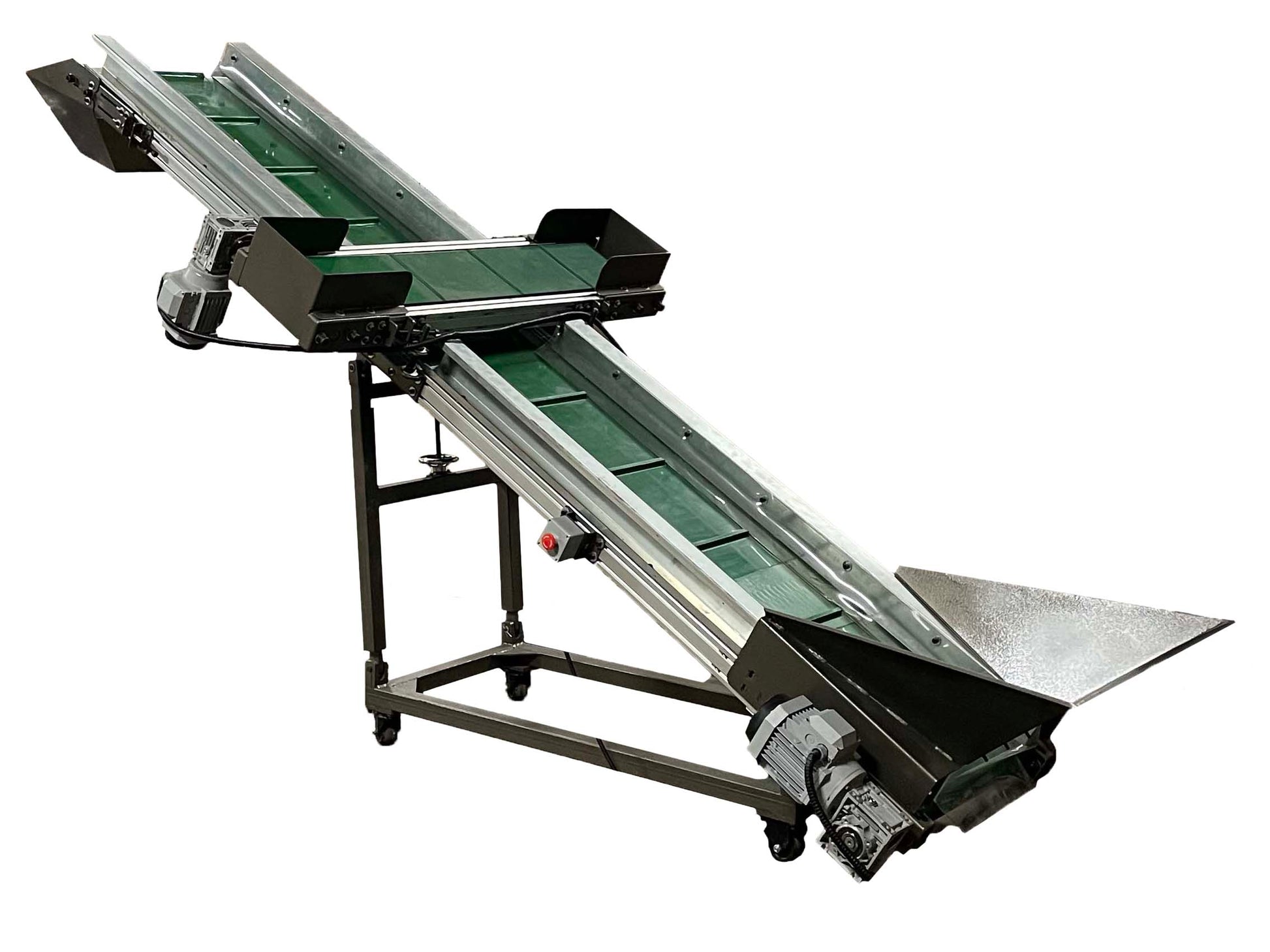

CT-920 CopperMine's Conveyor
Maximize your granulators throughput by providing a continuous and stable feed of wire chops directly into your machine with our Conveyor. Steel contamination can be catastrophic to your operation and decrease your copper value, our magnetic cross belt will remove any steel or iron from your wire before it reaches the granulator.

Power requirement: 208-220VAC, 60Hz, 3 Phase, 4.10A
Power consumption: 1.5kW
Processing speed: 112 ft/min
Conveyor length: 14ft (153" total floor space)
Conveyor belt width: 10"
Overall width w/ magnetic pulley: 49"
Minimum height: 77"
Maximum height: 96"

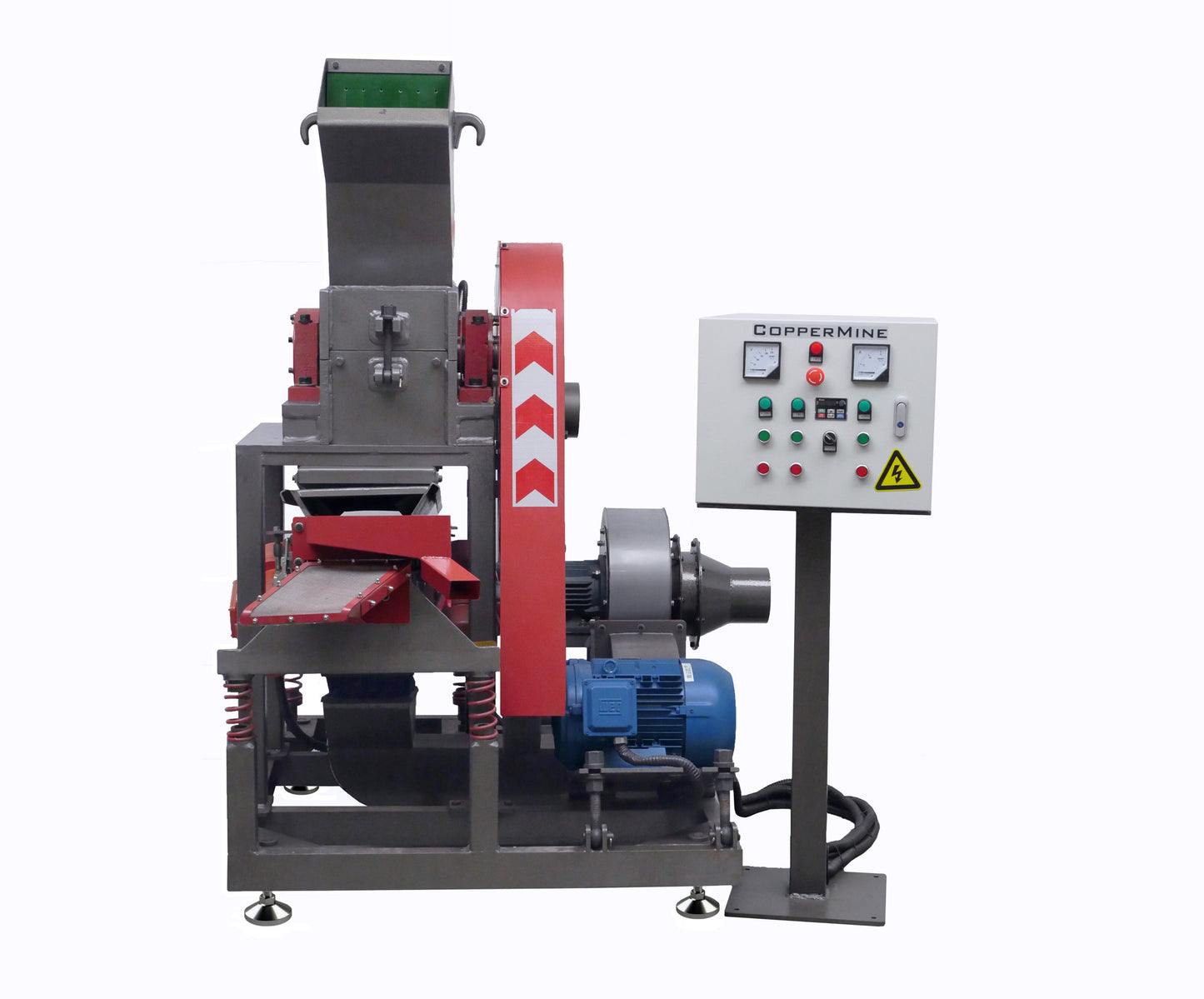

CT-610 CopperMine's Granulator
The original industrial compact copper wire granulator with a high purity rate of up to 99.99% for recycling both copper and plastic. Specialized to process automotive, communication, and other scrap wires/ cables under 9/16” in diameter.



Power requirement: 208 - 220VAC, 60Hz, 3-Phase, 15HP Motor, 60A
Power consumption: 14kW
Main chopper motor: 208VAC, 60Hz, 3-Phase, (42.6A) • Delta connection, 15HP/ 11kW, 1760 rpm
Blower motor: 208VAC, 60Hz, (3-Phase), (7.98A) • 2HP (1.5kW), 1750 rpm
Vacuum motor: 208VAC, 60Hz, (3-Phase) 4.6A 2HP (1.1kW), 3600 rpm
Vibrator motor (2 installed): 208VAC, 60Hz, 3-Phase, 1.45A Delta connection, 1/4kW/ 0.15kW, 1800 rpm
Dimensions: 70” x 46” x 66"H
Weight: 1,900 Lbs



Note:
* The above range of wire gauges are for typical wire products. Due to the variety of wire structures, actual range may vary.
Try it for 30 days and if it does not meet your expectations, just ship it back to us for a full refund of the purchasing price, no questions asked customer is responsible for the return shipping cost.
For more info about our EXTENDED WARRANTY contact us!
COPPERMINE'S Model 610 is the MOST VERSATILE copper wire granulator on the market.
Processing speed: approx. 150 lbs insulated wire per hour.
1-Year Warranty, most generous on the market backed by superior quality; Outstanding customer service
